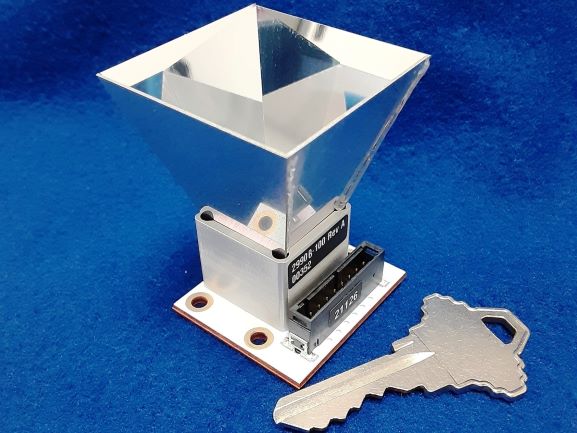

LumiFlood™ UltraViolet Curing
The LumiFlood™ UltraViolet Curing System is designed to cure large parts or many small parts simultaneously.
The light engine can be used alone or placed in tiled arrays to provide large area coverage.
The 2990B Series uses a 9 UV LED die array with three choices of peak wavelength ranging from 365 nm to 405 nm.
- Highly uniform field of irradiance™
- Reflective metal optics for UV, high power, and high temperature operations
- Continuous high current or pulsed operation
- Choose from 3 UV-LED wavelengths
APPLICATIONS
- UV curing
- Document verification
- Medical phototherapy
- Machine vision
 |
LumiFlood™ UltraViolet Curing 2990B | Downloads | |
|---|---|---|---|
|
|
|
|
Product Comparison
| Model Number | Wavelength Bin | Max Irradiance at 27 mm at 10 A |
|---|---|---|
|
2990B-100-001 2990B-100-002 2990B-100-003 |
365-370 nm 380-385 nm 400-405 nm |
380 mW/cm2 500 mW/cm2 500 mW/cm2 |
Accessories
 Thermal Pads |
 Cooling Fans |
 LumiBright DR Driver/Controller |
 Heatsinks |
 Wire Harness Assemblies |
 Heat Pipes |
