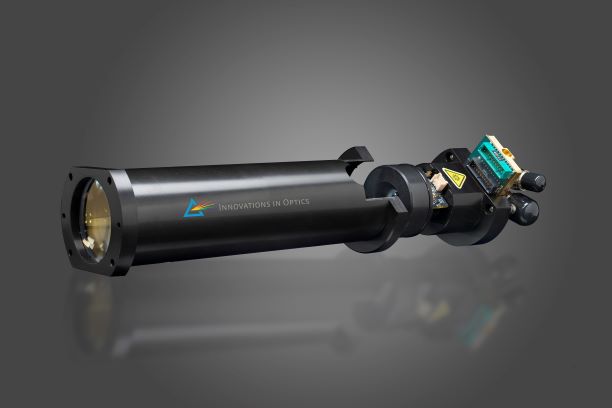

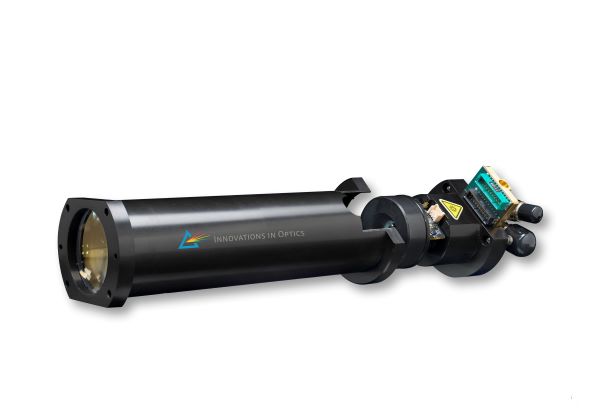

LumiDL™ UltraViolet Illuminator
The LumiDL™ UltraViolet Illuminator for DLP® Technology is an extremely high power, highly uniform UV-LED illuminator providing unprecedented speed and resolution for UltraViolet DLP applications.
2021 SAPPHIRE Awards Winner!!
 |
- Two models: DLP9500 and DLP7000 chipsets
- 365 thru 405 nm
- Single and multi-wavelengths
- UV-LED Array (COB)
- High Radiant power:
- > 30 Watts on DLP9500
- > 20 Watts on DLP7000
- Thermistor temperature monitoring
- Patented non-imaging and imaging optics
- Water-cooled heat exchanger
- Quick disconnect no-spill couplings
- Driver/controller
- Widely used in 3-D printing, computer-to-screen and computer-to-plate printing and maskless lithography
Covered By:
US Patent No. 9,971,135 B2
US Patent No. 10,409,045 B2
|
|
 |
 |
LumiDL™ UltraViolet Illuminator | Downloads | |
|---|---|---|---|
|
|
|
|
 |

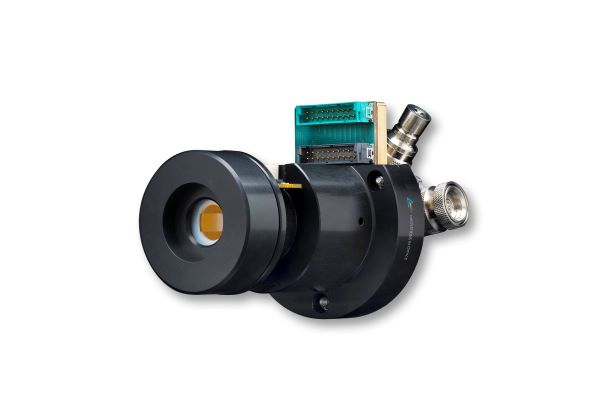

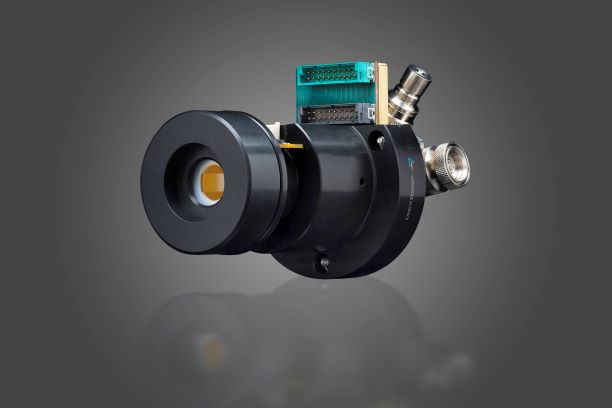

LumiDL™ UltraViolet Illuminator Field Replaceable Unit (FRU) | Downloads | |
|---|---|---|---|
|
|
|
|
Product Options
| Product Number | Max # of Die | DLP Chipset | Manifold |
|---|---|---|---|
| 3300B-620 | 18 | DLP9500 | Right Angle |
| 3300B-621 | 18 | DLP9500 | Straight |
| 3300B-650 | 12 | DLP7000 | Right Angle |
| 3300B-651 | 12 | DLP7000 | Straight |
Accessories
 LumiBright DR Driver/Controller |
