LumiBright™ UltraViolet Light Engine
IOI is excited to offer our LumiBright™ UltraViolet UHB LED Light Engines incorporating state-of-the-art technology and glass optics optimized for higher UV output.
- Up to 30W of optical output
- UV wavelength range from 365nm thru 440nm
- Customized spectral composition in single light engine

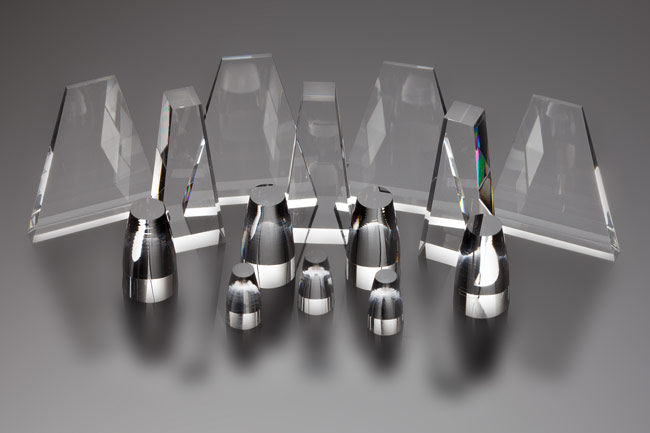

- Fused Silica optics for long-life, high power operation
- Uniform near and far fields
- Continuous high current or pulsed operation
  |

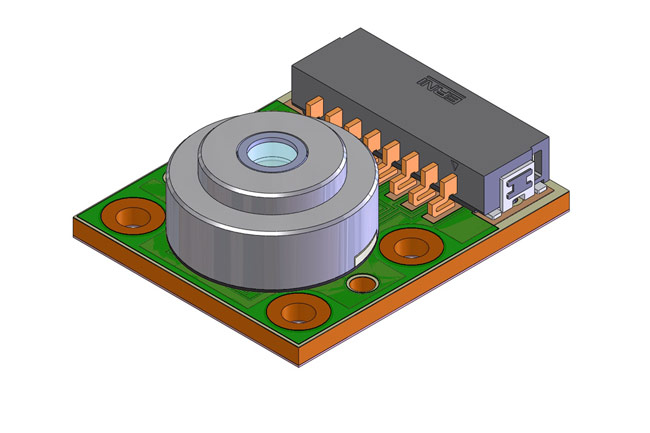

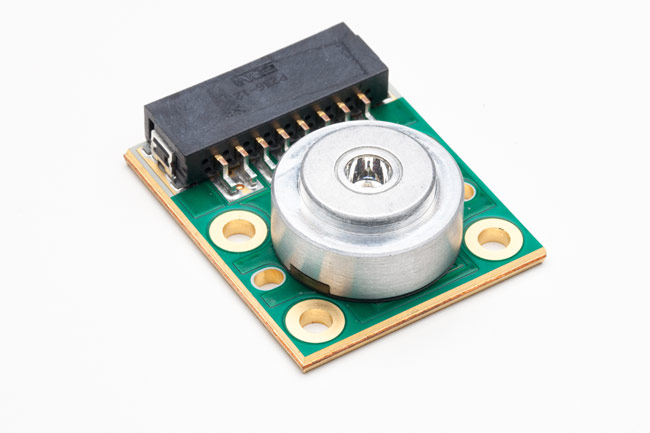

LumiBright™ UltraViolet Light Engines 2400B-5 | Downloads | |
|---|---|---|---|
|
|
|
|
 |

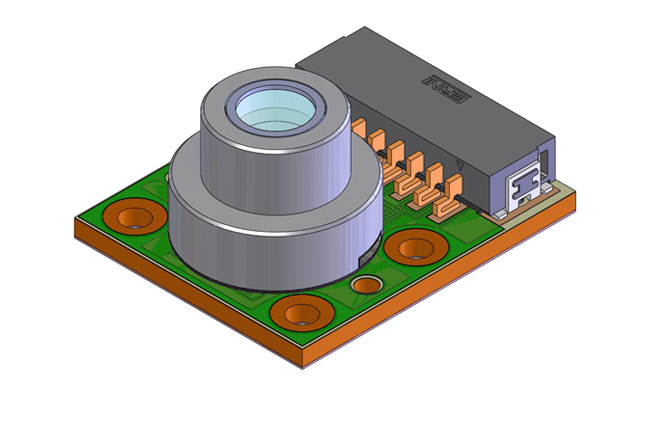

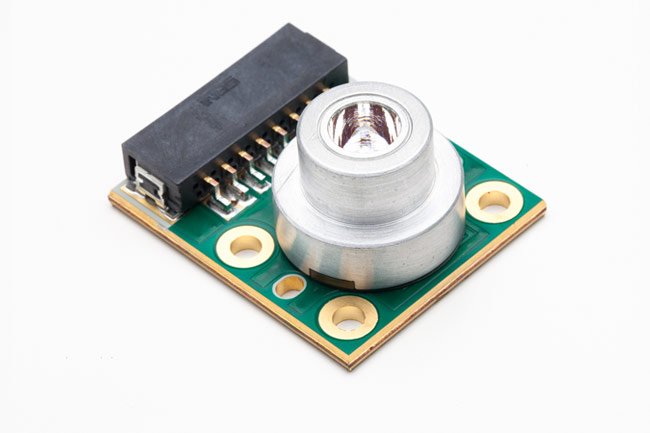

LumiBright™ UltraViolet Light Engines 2400B-4 | Downloads | |
|---|---|---|---|
|
|
|
|
|

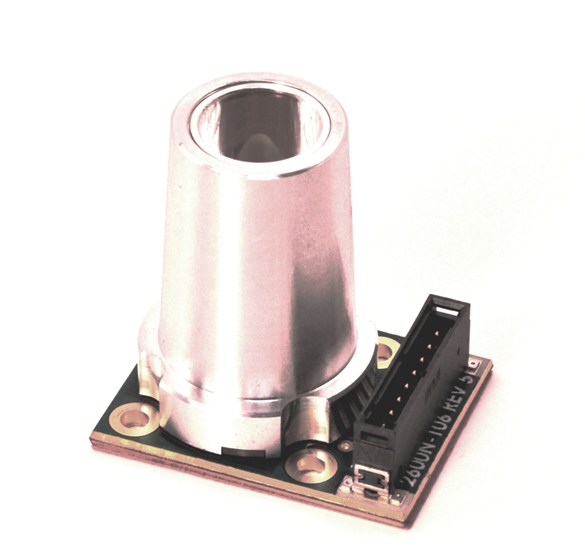

LumiBright™ UltraViolet Light Engines 2600N-7 | Downloads | |
|---|---|---|---|
|
|
|
|
LumiBright™ UltraViolet Light Engines Product Comparison
| Model Number |
Wavelength (nm) |
Typical Power (Watts) |
Numerical Aperture (NA) |
Far Field Extent (Degree FWHM) |
Effective Output Aperture (mm) |
|---|---|---|---|---|---|
| 2400B-5 |
365-370 385-390 395-400 400-405 |
20W @ 20A 25W @ 20A 27W @ 20A 25W @ 20A |
0.60 | 37 | 5.0 |
| 2400B-4 |
365-370 385-390 395-400 400-405 |
30W @ 30A 30W @ 30A 30W @ 30A 30W @ 30A |
0.66 | 41 | 7.5 |
| 2600N-7 |
365-370 385-390 395-400 400-405 |
30W @ 30A 30W @ 30A 30W @ 30A 30W @ 30A |
0.34 | 20 | 15.3 |
Accessories
 Heatsinks |
 Cooling Fans |
 Heat Pipes |
 Wire Harness Assemblies |
 LumiBright DR Driver/Controller |
