LumiBright™ Light Engines

The latest generation of Chip-on-board LED Light Engines that deliver high radiant power.

Powers up to 35 Watts or 4000 lumens
UV through visible and near infrared
Thermally controlled for long-life and high brightness
Uniform near and far fields
Continuous high current or pulsed operation

The 2400B Series can be butt-coupled to fiber bundles or liquid light guides.

Product List
Product Comparison
Accessories

LumiBright™ Visible & NIR Light Engines

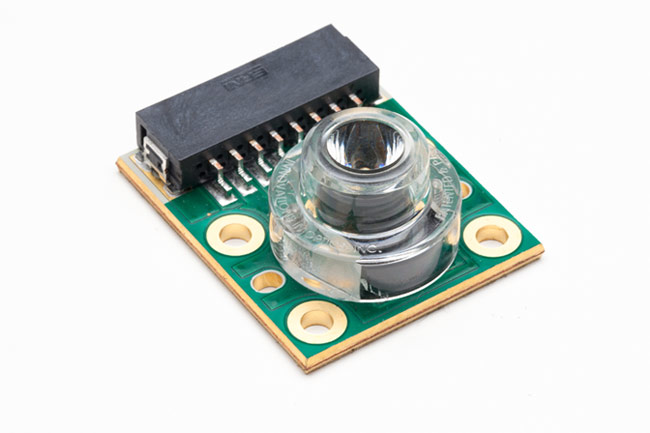

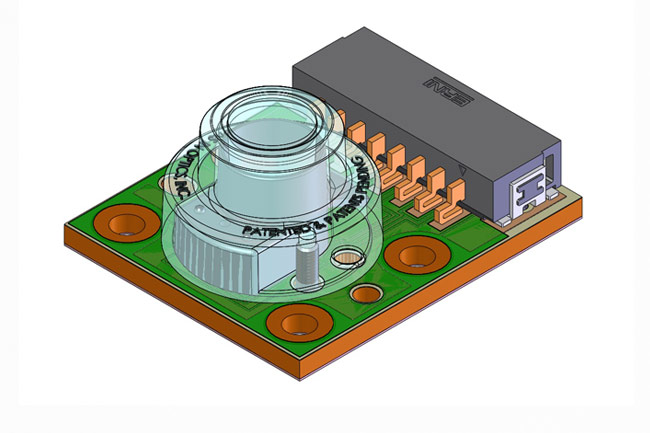

	LumiBright™ Visible & NIR Light Engines 2400B-1		Downloads
	41 degree half angle far field 8.0mm output diameter	470 nm thru near IR Maximum 7 die

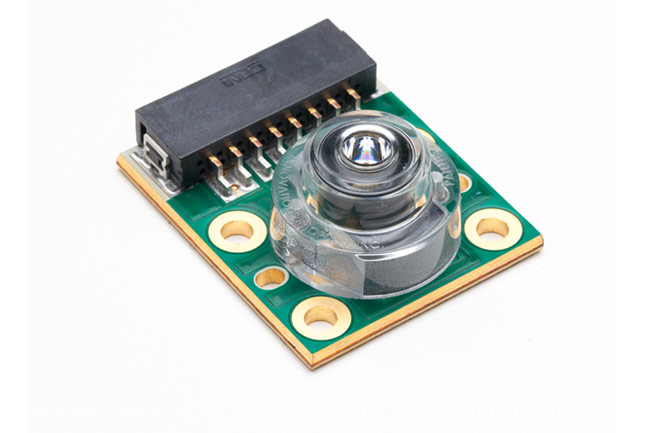

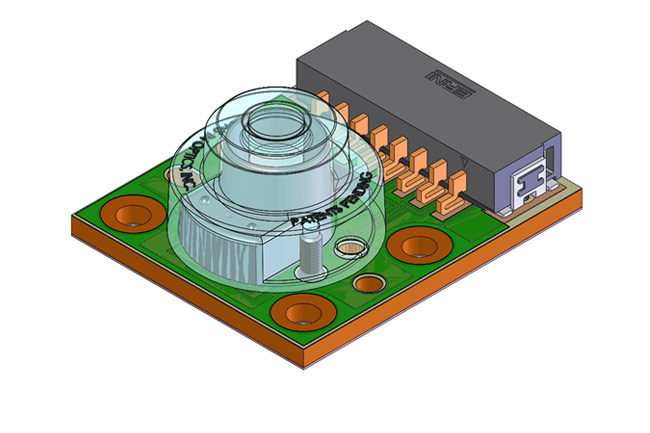

	LumiBright™ Visible & NIR Light Engines 2400B-3		Downloads
	37 degree half angle far field 5.1mm output diameter	470 nm thru near IR Maximum 7 die

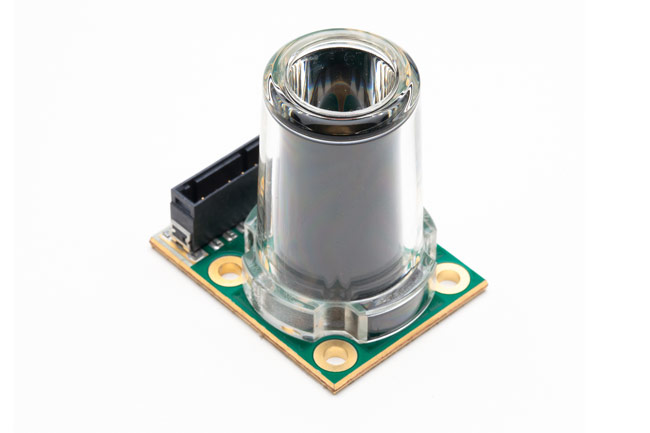

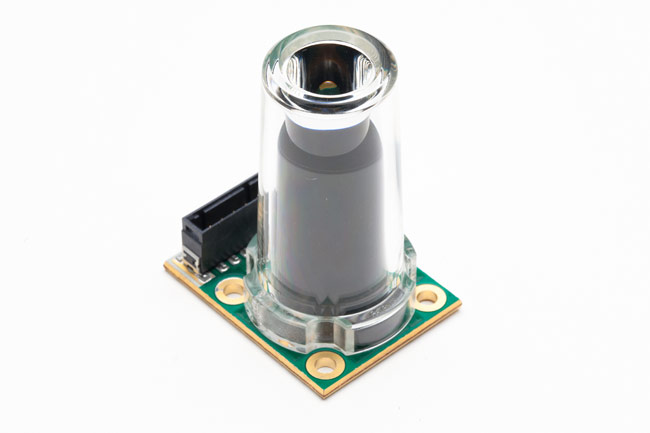

	LumiBright™ Visible & NIR Light Engines 2600N-1		Downloads
	20 degree half angle far field 15.3mm output diameter	470 nm thru near IR Maximum 7 die

	LumiBright™ Visible & NIR Multispectral Light Engines 2600N-1		Downloads
	Multiple wavelength options 20 degree half angle far field 15.3mm output diameter	470 nm thru near IR Maximum 7 die

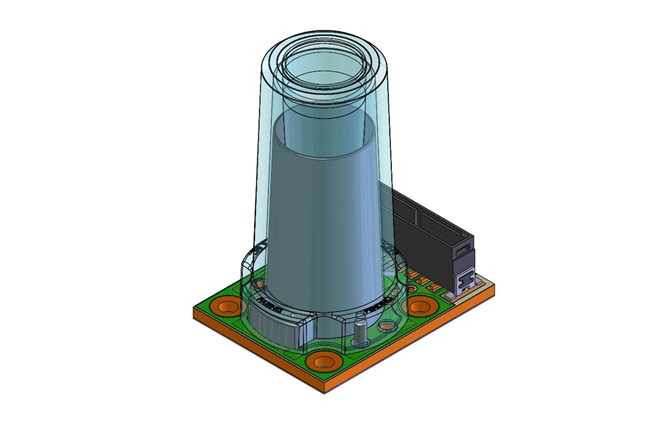

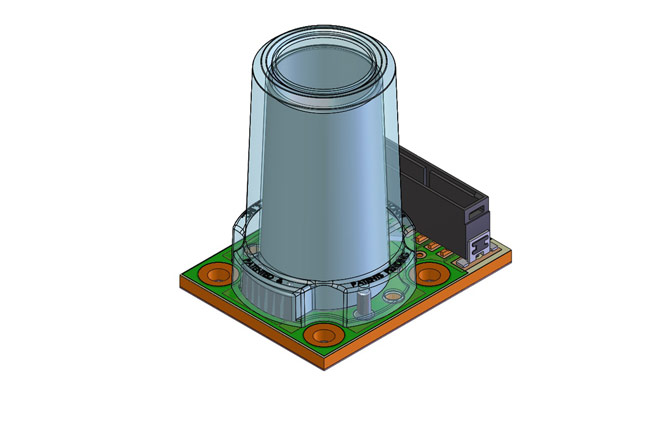

	LumiBright™ Visible & NIR Light Engines 2600N-2		Downloads
	20 degree half angle far field 13.5mm output diameter	470 nm thru near IR Maximum 9 die

	LumiBright™ Visible & NIR Multispectral Light Engines 2600N-2		Downloads
	Multiple wavelength options 20 degree half angle far field 13.5mm output diameter	470 nm thru near IR Maximum 9 die

LumiBright™ White Light Engines

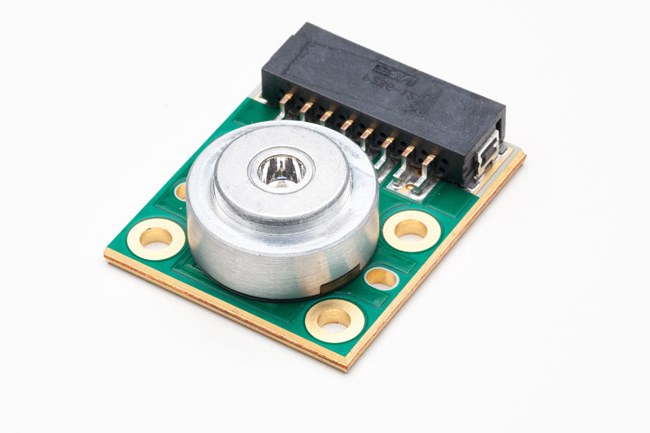

	LumiBright™ High Power White Light Engines 2400B-5		Downloads
	White (5300K +/-300) Patented, high power optics	0.60 Numerical Aperture Maximum 7 die

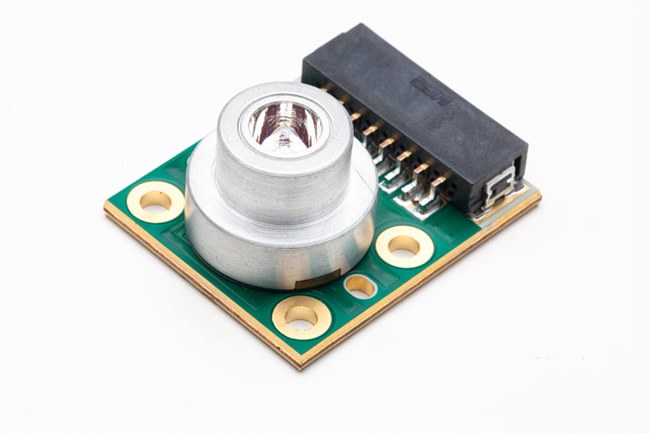

	LumiBright™ High Power White Light Engines 2400B-4		Downloads
	White (5300K +/-300) Patented, high power optics	0.66 Numerical aperture Maximum 19 die

Product Comparison

Model Number	Max # of Die	Effective Output Aperture (mm)	Numerical Aperture (NA)	Far Field Half-Angle (Degree FWHM)	Max Drive Current (A)	Lumens @ Max Drive Current
2400B-1	7	8.0	.66	41	-	-
2400B-3	7	5.1	.60	37	-	-
2600N-1	7	15.3	.34	20	-	-
2600N-1	7	15.3	.34	20	-	-
2600N-2	9	13.5	.34	20	-	-
2600N-2	9	13.5	.34	20	-	-
2400B-5	7	5.0	.60	37	15	1500
2400B-4	19	7.5	.66	41	30	4000
